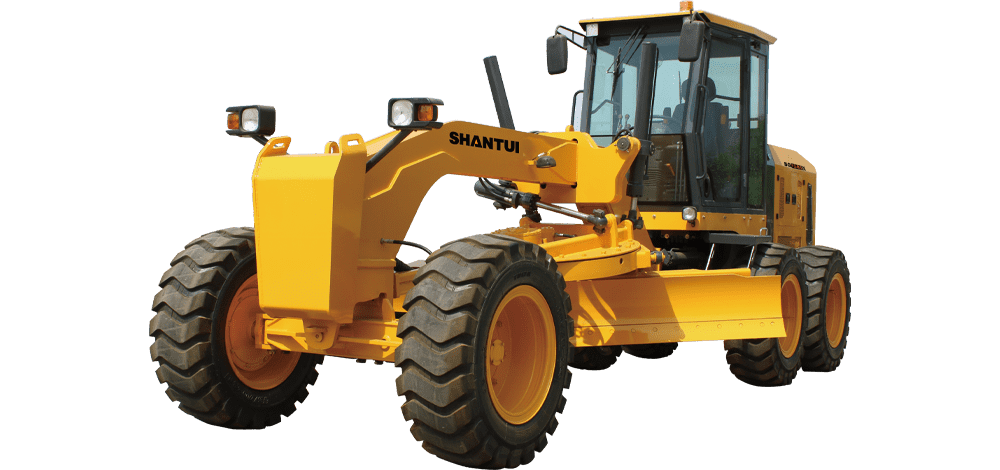

MotorConstruction equipment Grader SG12-B5 made in China

Engine power(kW) 93
Overall weight(T) 7.5
Blade width(mm) 3350

Product FEATURE

Configuration selling point
With its high-precision slewing bearing, this machine enables smooth rotation. The traction frame and main frame are meticulously engineered with superior strength to ensure a high safety coefficient.
Ease of maintenance and operation comfort
Featuring a well-sealed, dust-proof, and low-noise cab, this machine exhibits a spacious interior and a wide field of view, allowing for easy observation of the blade condition at both ends and reducing labor intensity. The centralized layout of filter elements facilitates convenient maintenance.
Adaptability to diverse working conditions
Designed to excel in diverse work conditions, including pavement leveling, ice and snow removal, and hard soil loosening, this machine has a small turning radius and flexible steering and is capable to meet construction demands within limited space.

PARAMETERS

Parameter SG12-B5
Engine power(kW) 93
Overall weight(T) 7.5
Blade width(mm) 3350
External dimensions(mm) 7650x2050x2960
Engine model 4BTA3.9-C125-II
Fuel tank capacity(L) 160
Hydraulic oil tank capacity(L) 110
Maximum traction(kN) 45
Maximum forward speed(km/h) 40
Maximum reverse speed(km/h) 30
Blade cutting angle(°) 33~85
Emissions(Indicated as per international standards) Eu stage II
