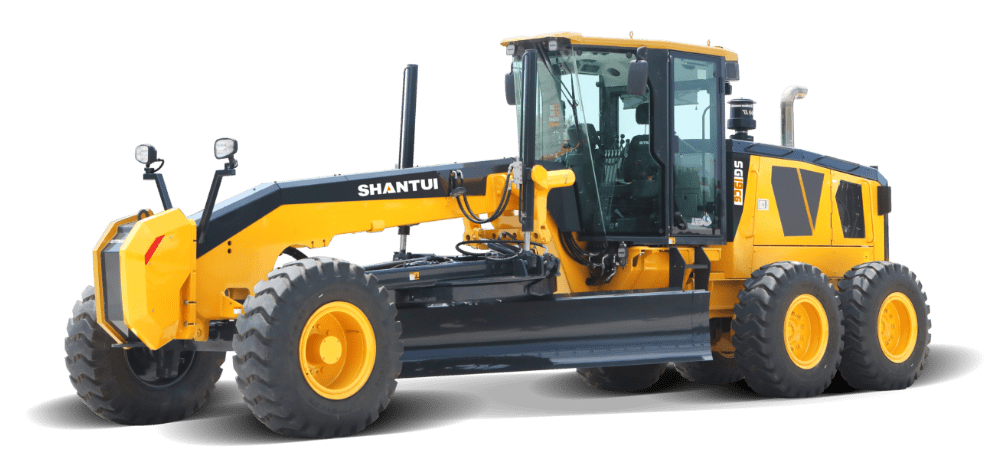

Motor Basic construction equipment Grader SG19-C6 made in China

Engine power(kW) 140
Overall weight(T) 16
Blade width(mm) 3965

Product FEATURE

Configuration selling point
The dedicated WP6 engine tailored for the group and the electronic control transmission self-developed by Shantui form a powertrain that is not only energy-efficient but also highly efficient. It comes equipped with a heavy-duty slewing bearing working device and cutting edges specially developed by Shantui, ensuring superior resistance against wear and exceptional resilience against impacts.
Ease of maintenance and operation comfort
The machine is designed with externally accessible lubrication points for ground lubrication and is equipped with a centralized pressure testing system. Every oil filler is designed to be externally accessible. The cab design of this machine eliminates the A-pillar and presents an expansive 320° wide field of vision. It is furnished with a mechanical suspension seat and an electronic control handle, ensuring a more comfortable and convenient operating experience.
Adaptability to diverse working conditions
The machine offers the flexibility to be fitted with a range of attachments, including the front moldboard and rear ripper, to meet the construction requirements across diverse working conditions, such as leveling, trenching, scraping, and stripping.

PARAMETERS

Parameter SG19-C6
Engine power(kW) 140
Overall weight(T) 16
Blade width(mm) 3965
External dimensions(mm) 9700x2600x3358
Engine model WP6G190E330
Fuel tank capacity(L) 360
Hydraulic oil tank capacity(L) 85
Maximum traction(kN) 87.8
Maximum forward speed(km/h) 40.7
Maximum reverse speed(km/h) 24.4
Blade cutting angle(°) 22~73
Emissions(Indicated as per international standards) Eu stage IIIA
