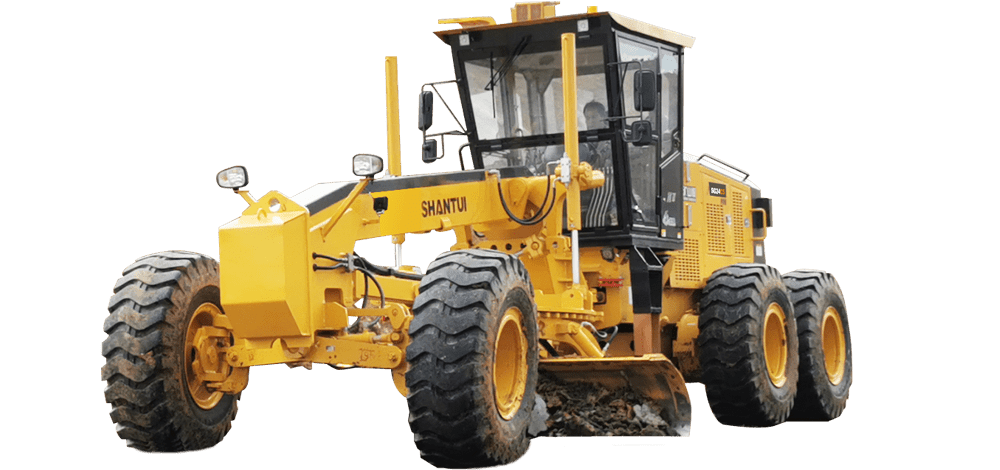

Motor Grader Level equipment SG24-C5 made in China

Engine power(kW) 176
Overall weight(T) 18.5
Blade width(mm) 3965

Product FEATURE

Configuration selling point
Featuring the dedicated WP7 engine tailored for the group and the mainstream drive system, this machine excels in delivering exceptional construction efficiency. It is equipped with a high-strength front axle and chassis engineered specifically for mining operations, coupled with an overload protection system, ensuring enhanced reliability.
Ease of maintenance and operation comfort
The side guard is designed with a 135° opening angle, facilitating convenient maintenance. The machine is also equipped with a centralized pressure testing system. The cab features a three-stage shock absorption system, air-suspension seat, and UV-resistant glass, completely meeting the driving and riding demands on mining roads.
Adaptability to diverse working conditions
The machine offers the flexibility to be fitted with a range of attachments, including the front moldboard and rear ripper, to meet the fine leveling, scraping, snow removal, and loosening needs of both general roads and mining roads.

PARAMETERS

Parameter SG24-C5
Engine power(kW) 176
Overall weight(T) 18.5
Blade width(mm) 3965
External dimensions(mm) 9445x2790x3560
Engine model WP7G240E301
Fuel tank capacity(L) 360
Hydraulic oil tank capacity(L) 110
Maximum traction(kN) 101.6
Maximum forward speed(km/h) 46.9
Maximum reverse speed(km/h) 28.5
Blade cutting angle(°) 27~73
Emissions(Indicated as per international standards) Eu stage IIIA
